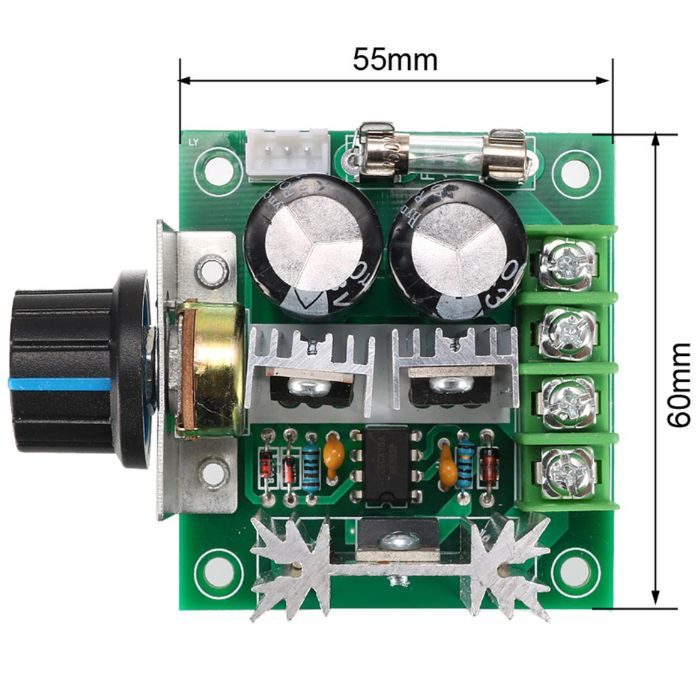

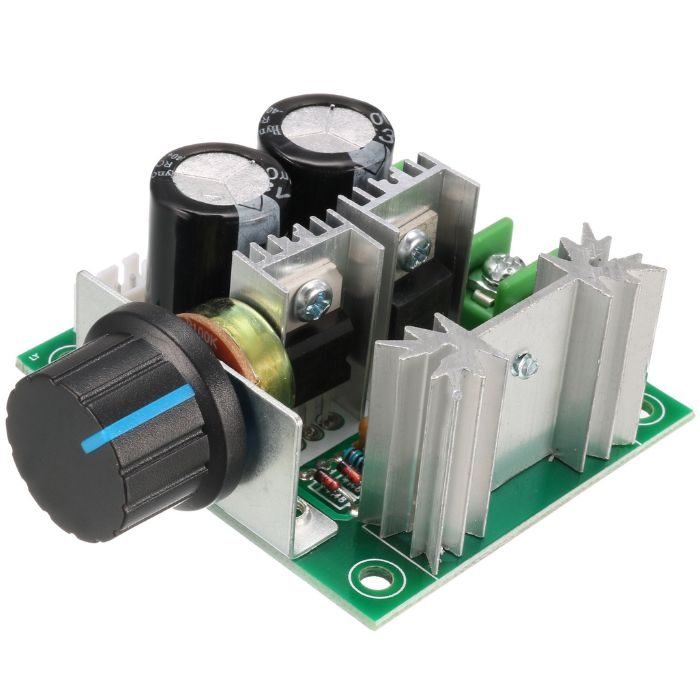

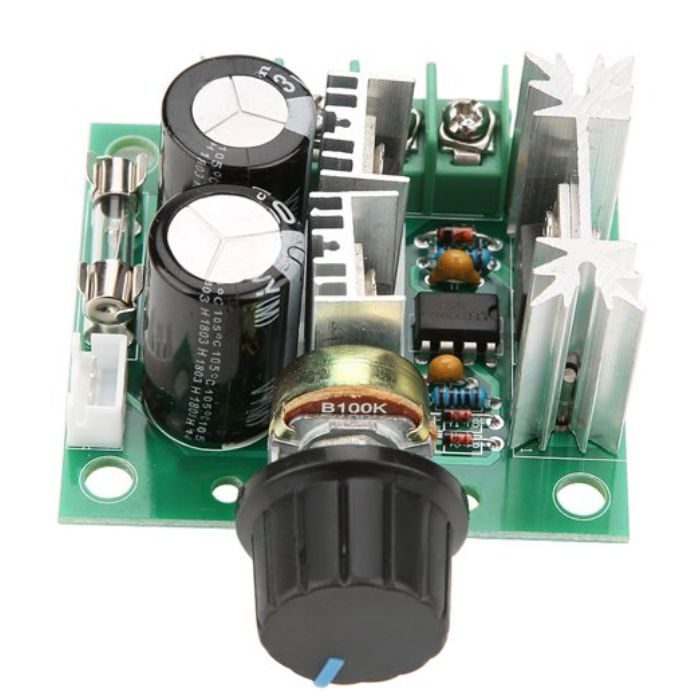

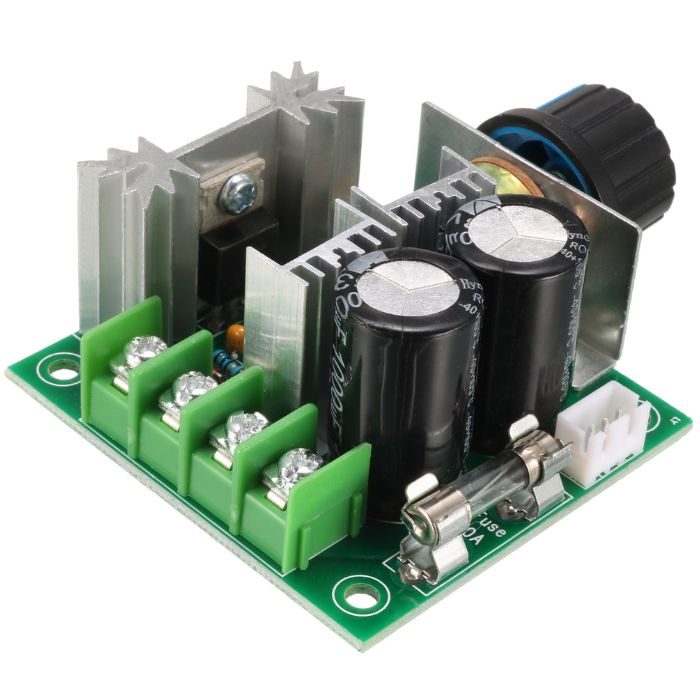

The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The 12 Volt DC Motor Speed Controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz.
Note: This cannot be used for the brushless motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Features:
Control the speed of a DC motor with this controller.
High efficiency, high torque, low heat generating.
With reverse polarity protection, high current protection.
Control voltage over-voltage protection function
The overload and short circuit protecting current is 10A
Applications:
Automotive: Controlling the speed of cooling fans, windshield wipers, and air conditioning systems.
Industrial Automation: Managing the speed of conveyor belts, exhaust fans, and other motor-driven machinery.
Home Appliances: Adjusting the speed of fans, pumps, and other household devices.
Treadmills: Regulating the speed of the treadmill belt for different workout intensities.
Robotics: Providing precise speed control for DC motors in robotic projects.
DIY Projects: Ideal for custom electronics projects requiring variable motor speed control
