CD4060 - 14 stage Ripple Carry Binary Counter IC

CD4060 - 14 stage Ripple Carry Binary Counter IC

The CD4x Series CD4060 IC consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows the design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition. All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times.

The CD4060-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

check out : CD4015 - Dual 4-Stage Shift Register IC

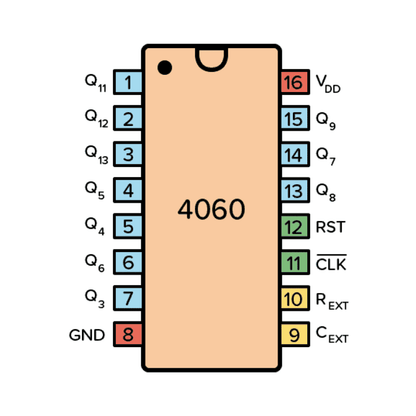

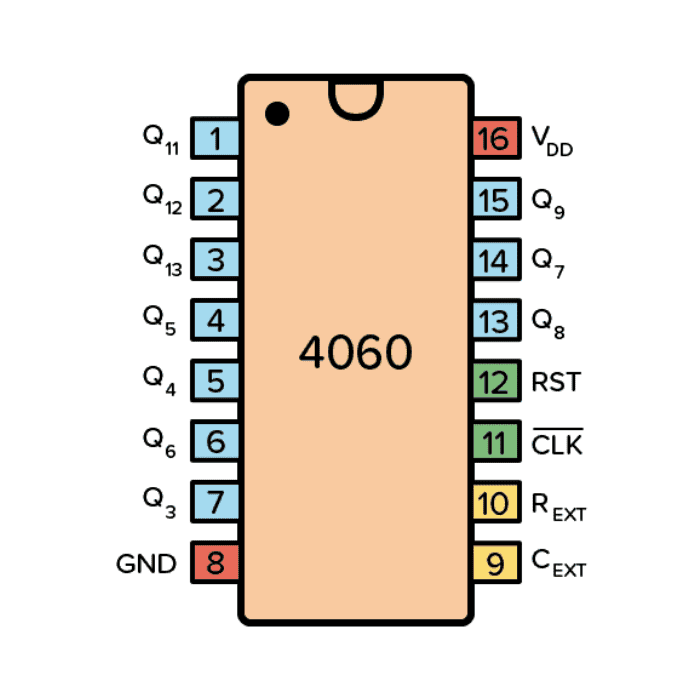

Pinout:

Applications:

• Control counters
• Timers
• Frequency dividers
• Time-delay circuits
