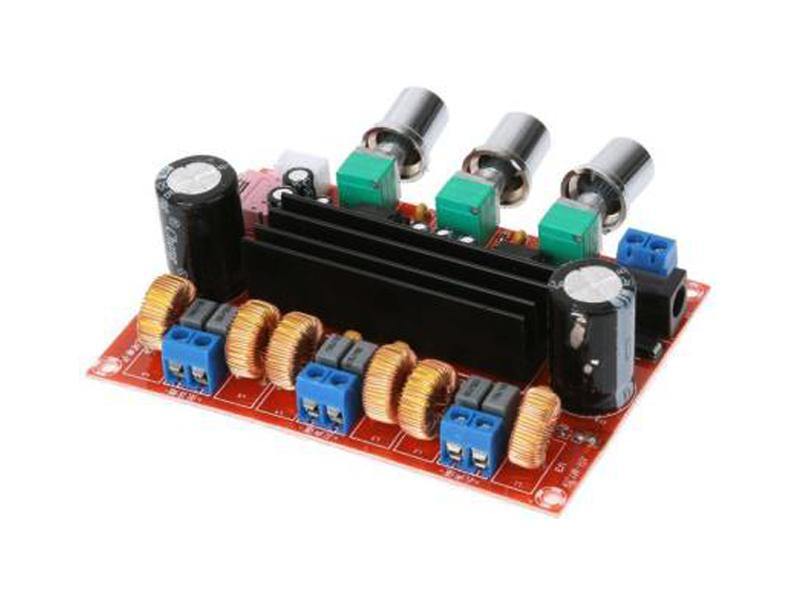

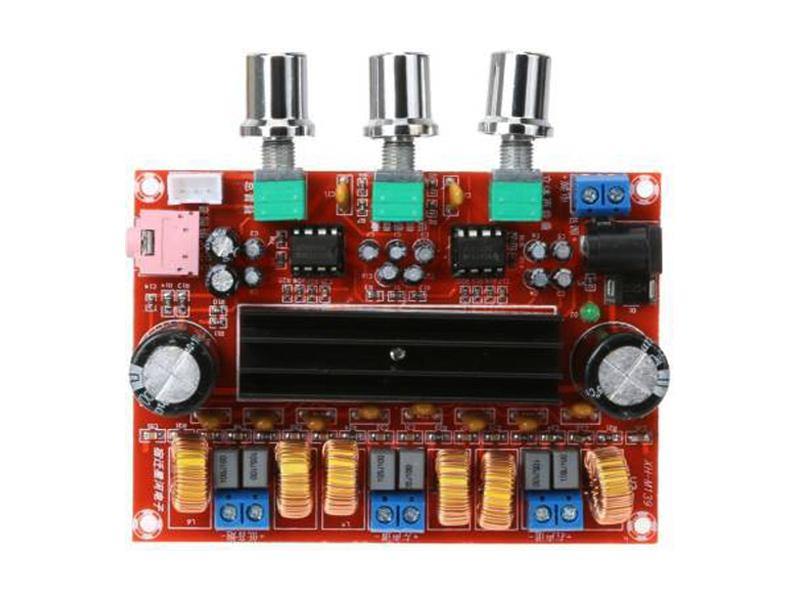

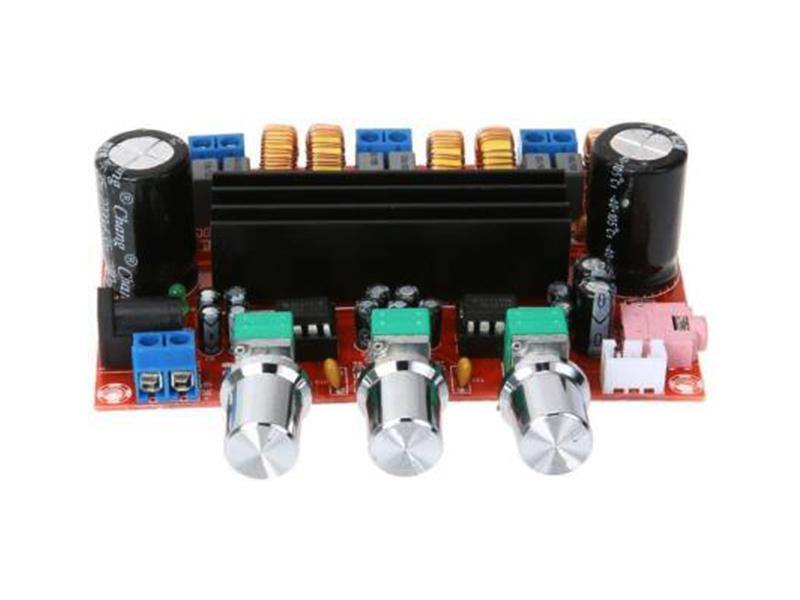

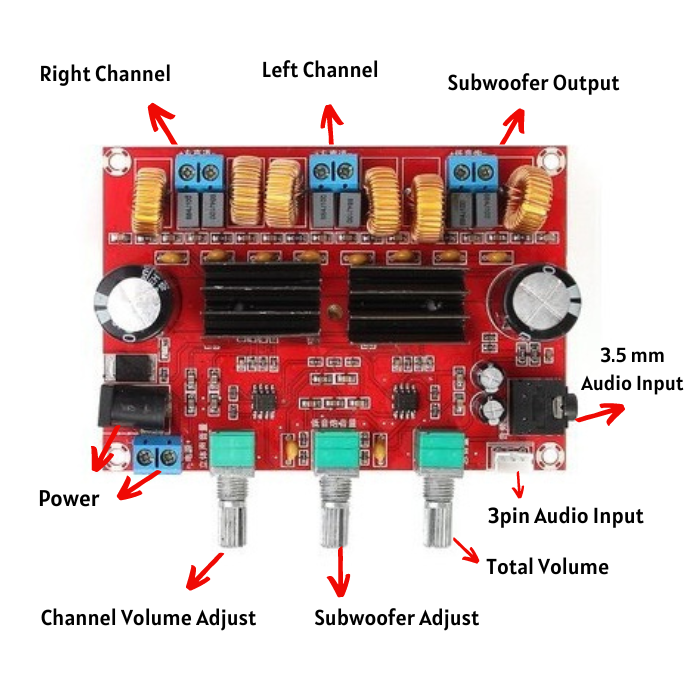

The 3 channel digital subwoofer amplifier board runs on two high-quality TPA3116D2 digital amplifier chips. It is powered at a DC supply voltage of 12-24V. The subwoofer amplifier board has very sound quality with great amplifying power. This amplifier board has 3 channels out of which there are two 50W channels and one 100W channel that works with high efficiency and produces low heat. Users can simply connect the power supply and loudspeaker box in order to enjoy pure digital music.
Disclaimer:
Please note that this 3-Channel Digital Subwoofer Amplifier Board uses a clone IC designed to offer similar functionality to TPA3116D2 digital amplifier chips. This product has been tested to ensure comparable performance and quality for compatible applications.
Key Features:
Utilizes two TPA3116D2 digital amplifier chips for excellent sound quality.
Operates with a DC supply voltage range of 12V to 24V.
Features two 50W channels for left and right speakers.
100W channel dedicated to the subwoofer.
Minimizing heat generation even under high load conditions.
Outputs are compatible with 4-8 ohm speaker configurations.
Offers a frequency response range from 14Hz to 100kHz.
