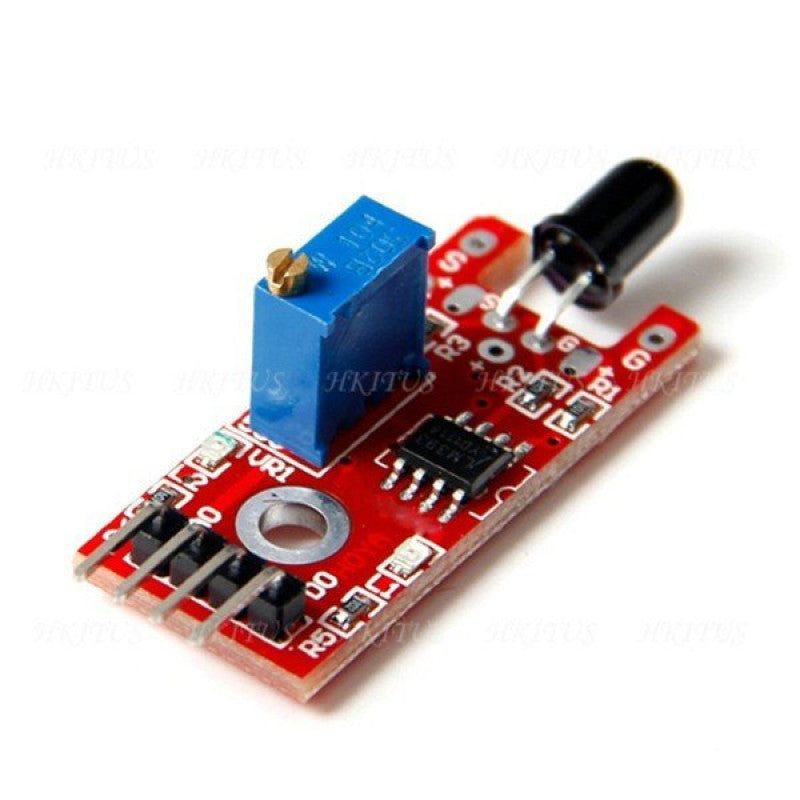

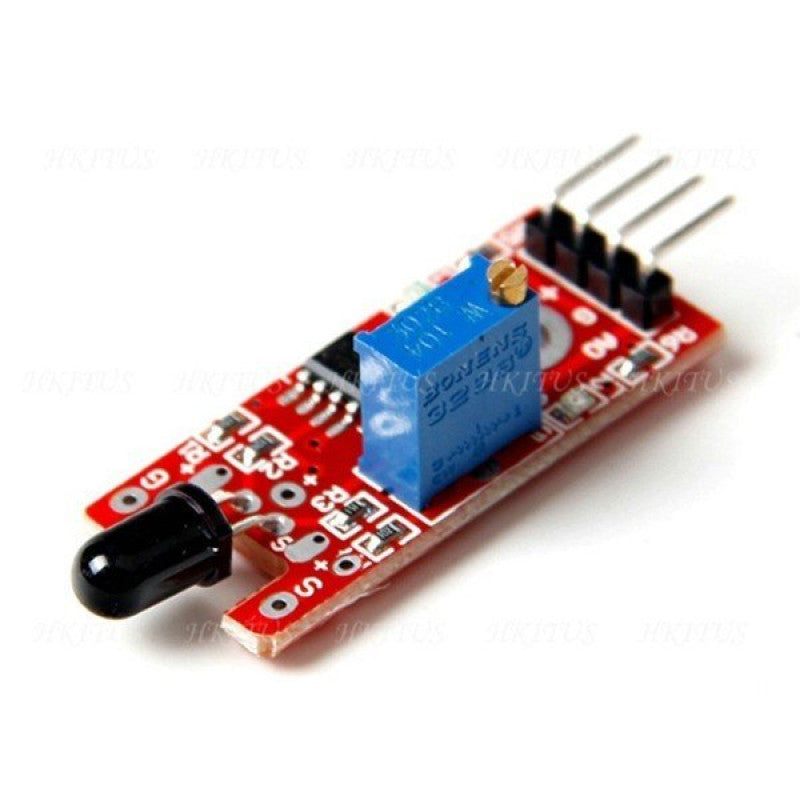

This 4Pin Flame Sensor Module is used to detect fire/flame sources or other light sources of the wavelength in the range of 760nm 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation.
The sensor can be a great addition to a firefighting robot, it can be used as a robot's eye to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.

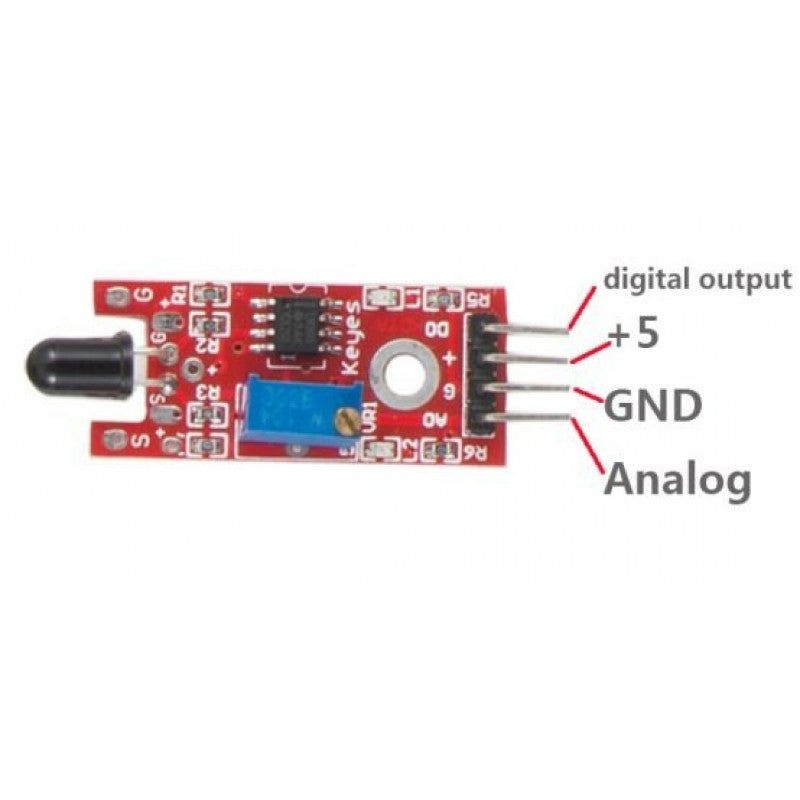

The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer.
