CMOS 8-Input NAND/AND Gate IC - CD4068

CMOS 8-Input NAND/AND Gate IC - CD4068

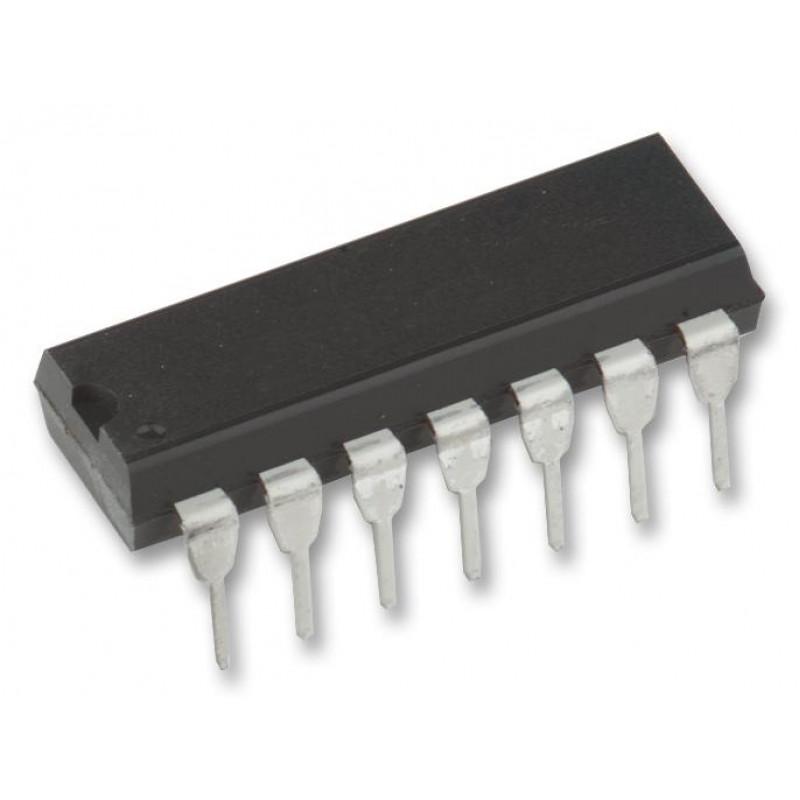

The CD4068 CMOS 8-Input NAND/AND gate IC (Integrated Circuits) provides the system designer with direct implementation of the positive logic 8-Input NAND and AND functions and supplements the existing family of CMOS gates.

The CD4x Series CD4068 is an 8-Input NAND/AND Gate CMOS logic-based IC belonging to a CD4000 series of integrated circuits. Firstly, Two output options are available such as AND and NAND gate. Secondly, the same input pins deliver both logical functions. It is available in a variety of packages which includes 14-pin PDIP, GDIP, PDSO. The typical operating voltage of the IC is +5V, but it can also be operated +10V and +15V. It has a standard symmetric output. This IC is useful for applications requiring low power. Furthermore, it offers a wide voltage operating range.

check out : CMOS Hex Buffers/Converter IC - CD4009

Pinout:

Pinout of CD4068
