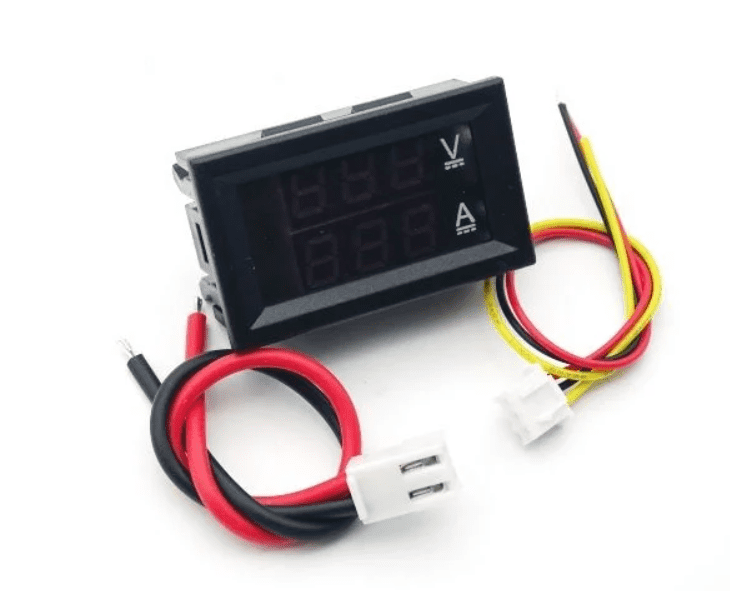

Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)

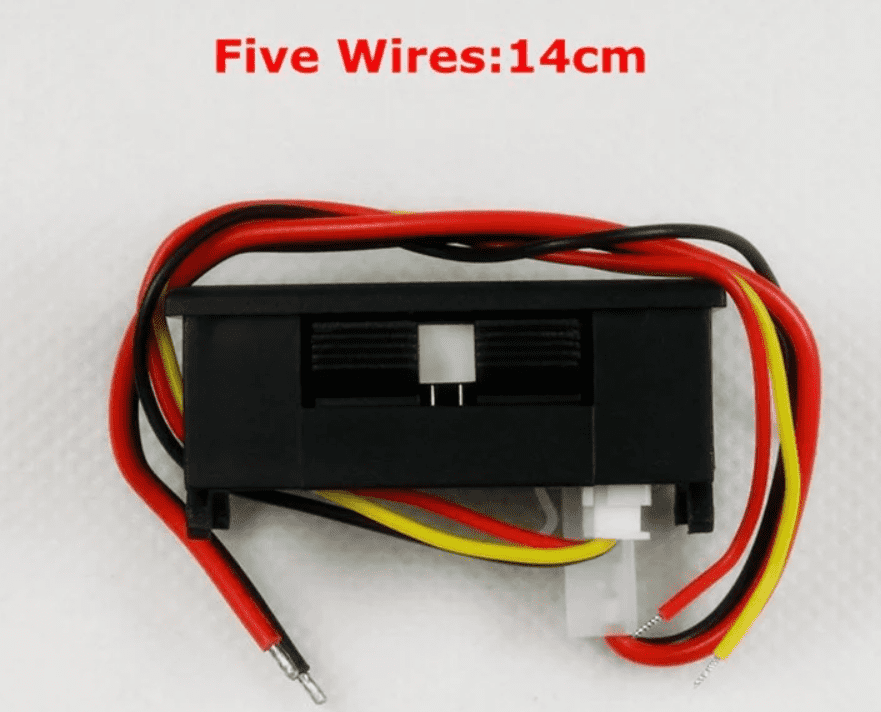

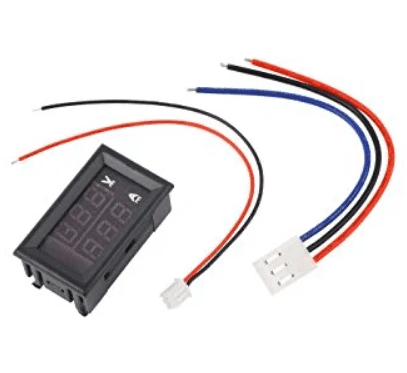

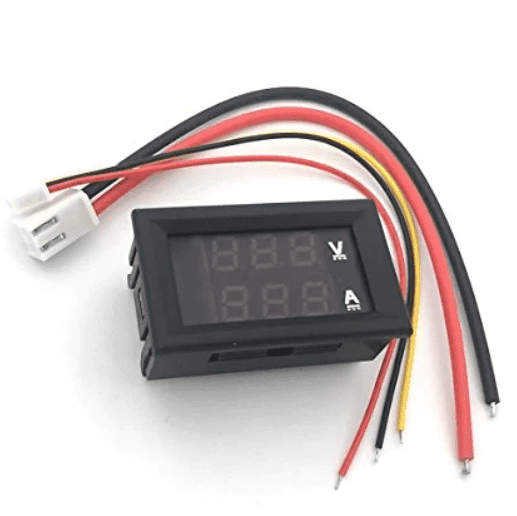

This is Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses.
One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning
Note : Shunt resistor is not included with this product
Features:
Runs on 5V power supply.

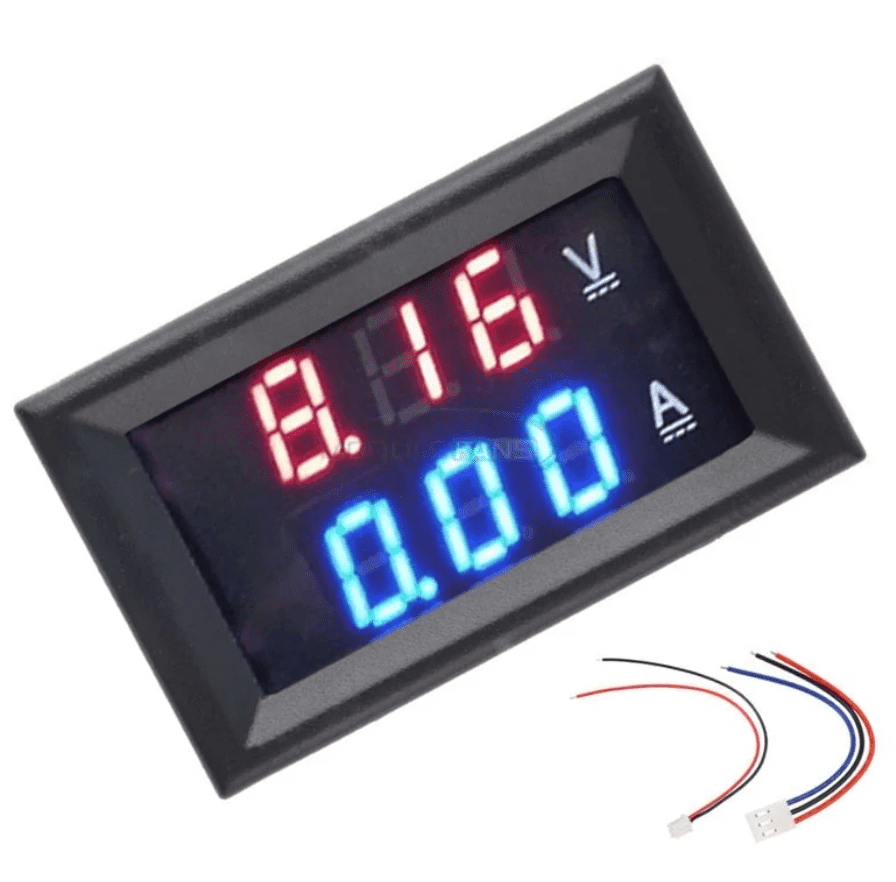

Shows voltage in red and current in blue.
Requires less than or equal to 60mA of current.
Can measure from 0V to 100V DC.
Capable of measuring current from 0A to 100A.
Provides accuracy of ±1% (plus or minus 1 digit).
Operates effectively in temperatures ranging from -10°C to 65°C.
Updates readings every 500 milliseconds for real-time monitoring.
