2A Dual L298N Motor Driver Module with PWM Control

2A Dual L298N Motor Driver Module with PWM Control

Rs. 99.00
Rs. 99.00
Sale Sold out

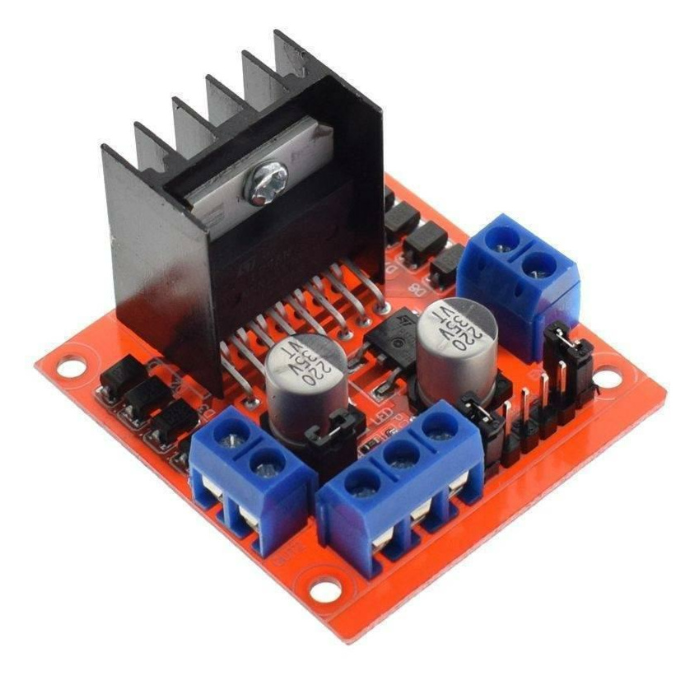

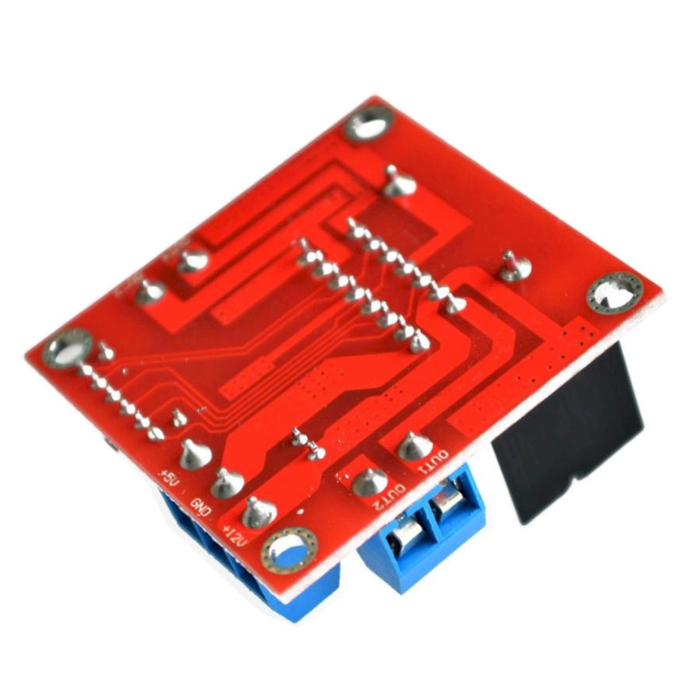

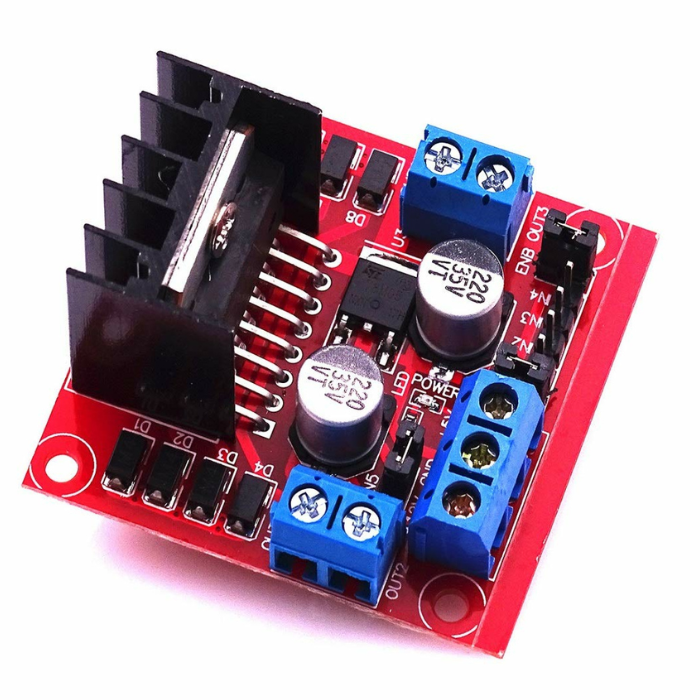

2A Dual L298N Motor Driver Module with PWM Control

The L298N Motor Driver Module is a great choice for controlling motors! It contains a double H bridge L298N chip, which has a maximum voltage of 46V and a current of 2A. This L298N High-voltage Dual-channel motor driver works with a logic voltage of 5V and can drive motors with a voltage range of 5-35V, giving you good efficiency with a maximum power output of 25W.

One cool feature of the L298N-based motor driver module is that it has current sensing for each motor, so you can easily check how they’re doing. It also features a heatsink to keep it cool while running, which increases efficiency. Also, there is a power-on LED indicator that indicates when it is active. The L298N Module is perfect for controlling DC and Stepper motors, switches, relays, robotic cars, arms, etc.

Features:

  • Uses an L298N IC for effective motor control.
  • Includes a 78M05 Voltage Regulator for internal circuitry power.
  • Jumper enables the voltage regulator for power supplies ? 12V; requires separate 5V for supplies > 12V.
  • ENA and ENB pins control motor speed; IN1 & IN2 and IN3 & IN4 control motor direction.
  • Features a Power LED for status monitoring.
  • Compact design with integrated resistors and capacitors for stability.
  • Easy to use with popular microcontrollers like Arduino.

Pinout

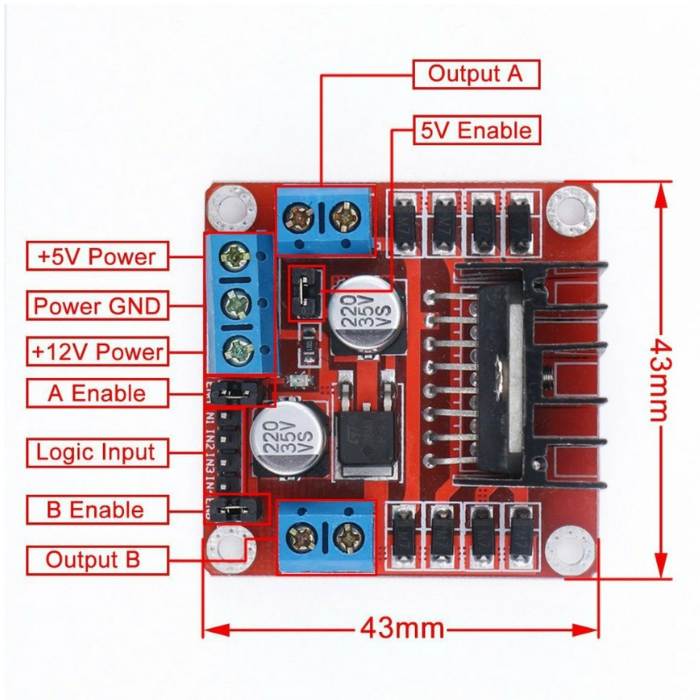

L298N Motor Driver Module Pinout
Pin Name Description
IN1 & IN2 Motor A input pins. Used to control the spinning direction of Motor A.
IN3 & IN4 Motor B input pins. Used to control the spinning direction of Motor B.
ENA Enable pin for Motor A — allows PWM speed control of Motor A.
ENB Enable pin for Motor B — allows PWM speed control of Motor B.
OUT1 & OUT2 Output pins to Motor A — these connect to the two leads of Motor A.
OUT3 & OUT4 Output pins to Motor B — these connect to the two leads of Motor B.
12V 12V (or motor supply) input from DC power source — supplies power to the motors.
5V Logic supply pin (5 V) — supplies power for the internal switching logic circuitry in the L298N IC.
GND Ground pin — common reference for the logic and motor power supply.

Comparison: L298N vs L293D vs BTS7960 Motor Driver Modules

Specification L298N L293D BTS7960
Operating Voltage 5V – 35V 4.5V – 36V 6V – 27V
Output Current (per channel) Up to 2A Up to 600mA Up to 43A
Number of Channels 2 (Dual H-Bridge) 2 (Dual H-Bridge) 1 (Single H-Bridge)
PWM Control Yes (ENA/ENB Pins) Yes (Enable Pins) Yes (PWM Input Pins)
Logic Voltage 5V 5V 3.3V – 5V compatible
Heat Dissipation Moderate (Built-in Heat Sink) Low (Needs external cooling for high load) High (Integrated powerful MOSFETs with heat sink)
Motor Type Supported DC Motors, Stepper Motors DC Motors, Small Steppers High-Power DC Motors
Efficiency Medium (BJT-based) Low (BJT-based) High (MOSFET-based)
Suitable For Robotics, Medium DC Motors Basic Projects, Low-Power Motors High-Torque Motors, Electric Vehicles

Applications:

  • Robotic Cars
  • Robotic Arms
  • Controlling the motor's speed and direction
