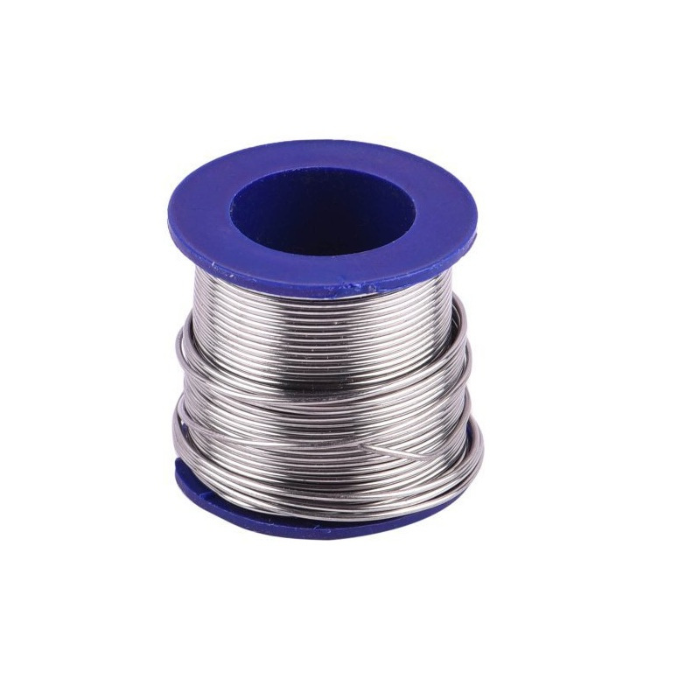

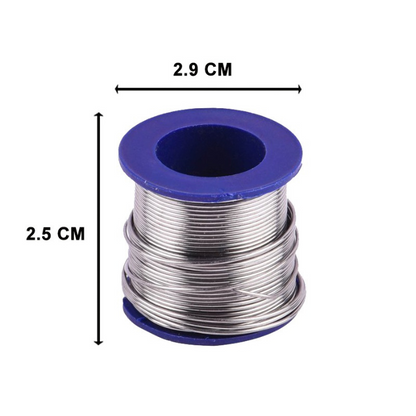

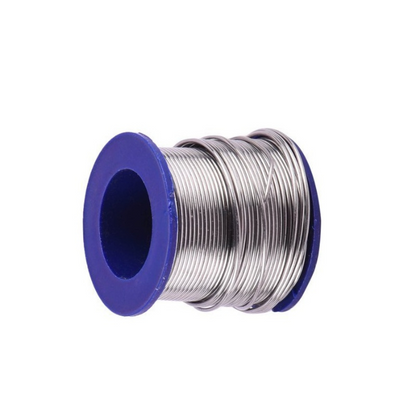

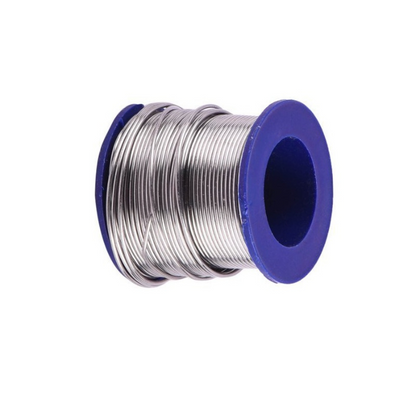

NOEL Solder Wire 22 SWG Grade 60/40 is a high-quality soldering material designed specifically for electronics applications.
This 50gm pack features the industry-standard 60% tin and 40% lead composition, offering the perfect balance between durability and ease of use.
The 22 SWG (Standard Wire Gauge) thickness, measuring approximately 0.7mm in diameter, makes it versatile enough for most electronic soldering tasks while allowing precise application on circuit boards and components.
The wire's low melting point range of 183-190°C ensures quick heating and cooling cycles, reducing the risk of damage to heat-sensitive components while maintaining excellent electrical conductivity.
Features:
60/40 tin-lead composition for optimal electrical conductivity and mechanical strength
22 SWG (0.7mm) diameter suitable for precision electronics work
Built-in rosin flux core eliminates need for separate flux in most applications
Low melting point range (183-190°C) for quick soldering operations
50gm pack size convenient for students and small repair shops
Non-corrosive formulation safe for electronic components
Produces clean, shiny joints with excellent wetting properties
