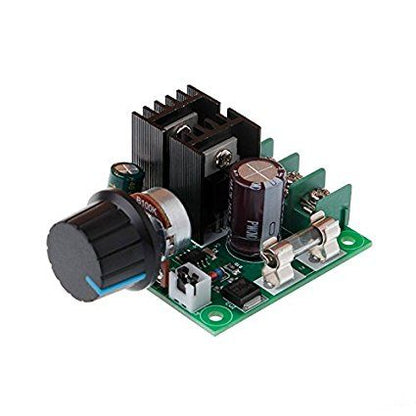

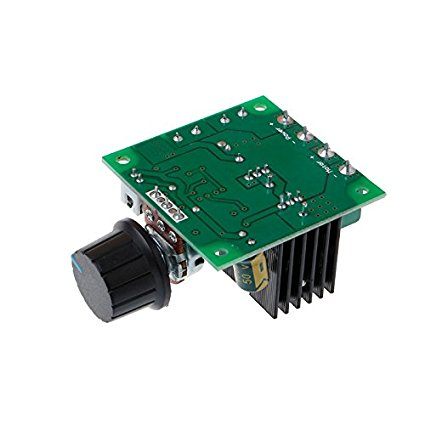

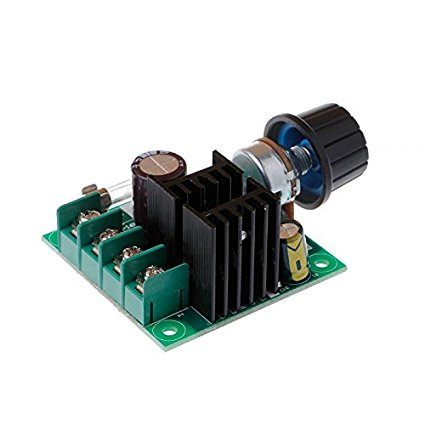

This is the 9V-50V 10A PWM DC Motor Speed Controller, The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz.
Features:
Control the speed of a DC motor with this controller.
High efficiency, high torque, low heat generating.
With reverse polarity protection, high current protection.
Control voltage over-voltage protection function
The overload and short circuit protecting current is 10A
