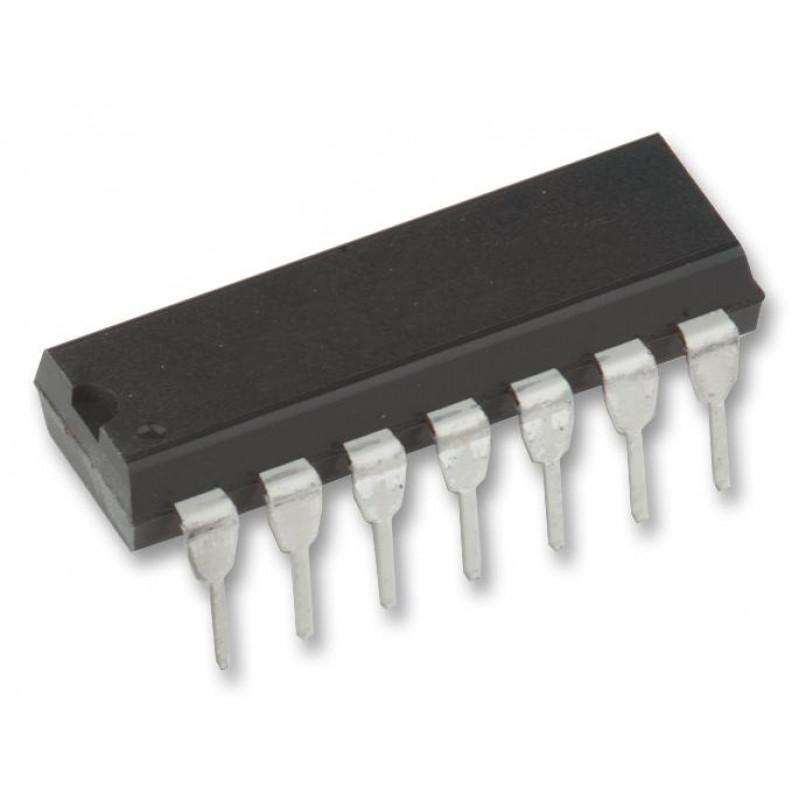

CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC

CD4030 - Quad 2-Input Exclusive OR (EXOR) Gate IC

The CD4030 IC types consist of four independent Exclusive-OR gates. The CD4030 provides the system designer with a means for direct implementation of the Exclusive-OR function.

The CD4030 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

check out : CD4519 - Quad AND/OR Select Gate IC (Original)

Pinout:

Applications:

• Even and odd-parity generators and checkers
• Logical comparators
• Adders/subtractors
• General logic functions
